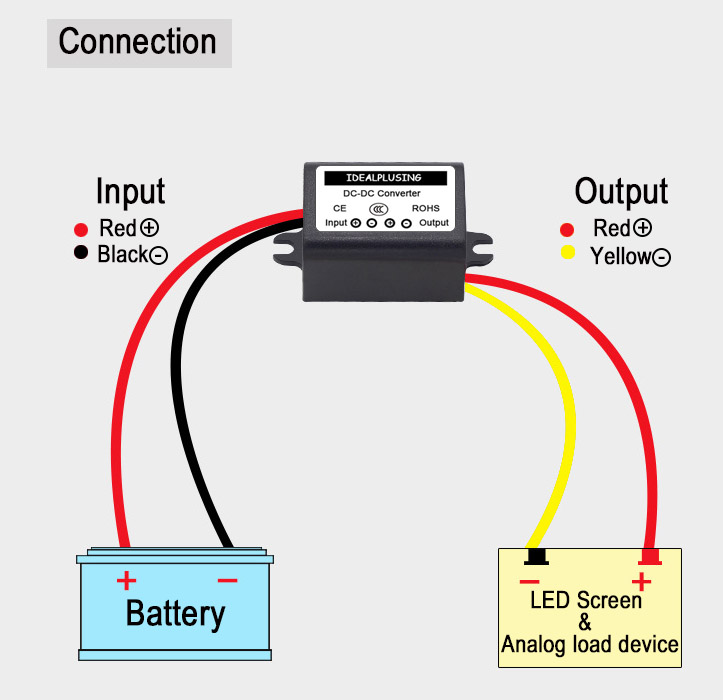

The input and output lines of the DC converter need to be connected to the power supply, load and other equipment respectively. The specific connection method needs to be selected according to the actual situation.
1. Connecting the input wires
The input wires of the DC converter must be connected to the power supply. There are usually two, one positive and one negative. The polarity of the DC power supply is very important, so when wiring, you must pay attention to the accuracy of the polarity and fix the ends of the wires as tightly as possible to ensure the reliability of the line.
2. Connecting the output wires
The output line of the DC converter must be connected to the load, which is the power supply that produces the change. There are usually two output lines, one positive and one negative. Similarly, you must pay attention to the polarity of the wiring of the output lines, and the ends of the wires must be fixed tightly to ensure that the output of the power supply is accurate and reliable.
Conclusion:After the connection is completed, please check whether the power converter is connected correctly and make sure there are no loose wires or obvious faults. Then plug in the power plug and start using your device. In short, correct wiring is very important for the operation of the DC converter. We need to carefully choose the appropriate connection method and pay attention to some details to ensure the normal operation of the circuit.
