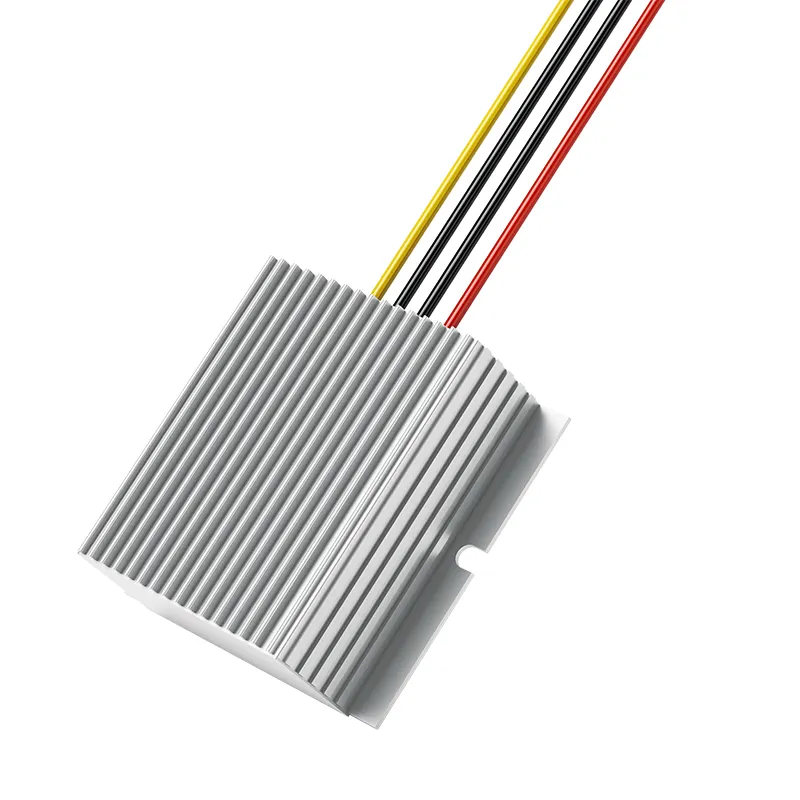

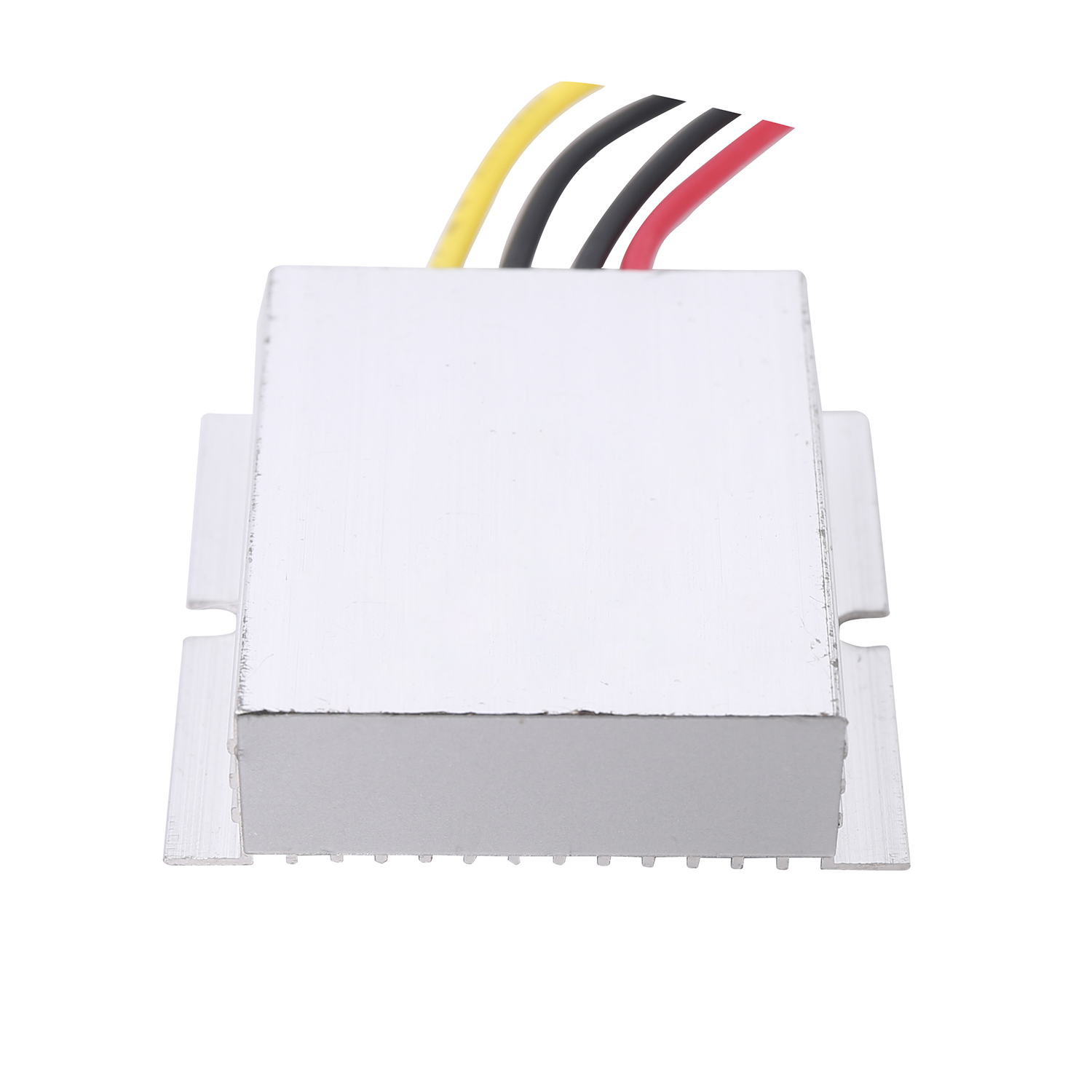

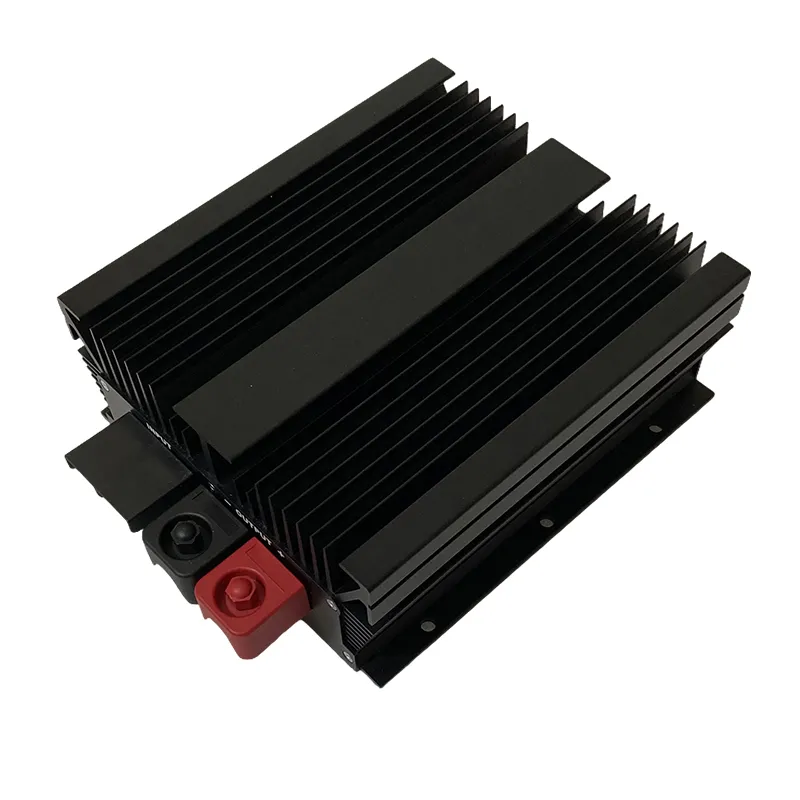

48V to 24V DC Step dc buck converter 2A, 3A, 5A, 6A,…100A,120A,125A
Input Voltage: DC30V-60V Output voltage: DC24V Output current : 2A, 3A, 5A, 6A,10A,15A,20A,25A,30A,40A,50A,60A,80A,100A,120A,125A, Design: Non Isolated (We provide customized for different kinds of DC-DC solutions, if you can not find the right specification to meet your requirement. Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us)
- Input Voltage: DC 30V-60V / Output Parameters: DC24V, 2A, 3A, 5A, 6A,10A,15A,20A,25A,30A,40A,50A,60A,80A,100A,120A,125A,
- High conversion efficiency: Synchronous Rectification Technology, multiple intelligent protection functions, conversion efficiency of up to 93%, good stability, and easy installation.
- Protection: High-quality aluminum shell, Fast heat dissipation. Built-in Overload, Overcurrent, Overvoltage, Overtemperature, and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation.
- Application: Widely used in golf carts, photovoltaic, electric power, monitoring systems, automobiles, electric bicycles motorcycle scooters, LED, instruments, etc
- Precision manufacturing, excellent performance, one-year warranty, worry-free after-sales, and rapid response.
- keywords: dc buck converter
| Input Voltage VDC Range |
Output Volts VDC |
DC Output Current AMP | Max Power WATT |
Size (MM) L*H*W |
NW/GW （G） |
| 30-60VDC | 24VDC | 1A | 24W | 46*32*18 | 45G/55G |
| 30-60VDC | 24VDC | 1A | 24W | 44*24.5*20 | 45G/55G |
| 30-60VDC | 24VDC | 2A | 48W | 66*57*22 | 100G/125G |
| 30-60VDC | 24VDC | 2A | 48W | 44*24.5*20 | 45G/55G |
| 30-60VDC | 24VDC | 3A | 72W | 58*40*22 | 100G/125G |
| 30-60VDC | 24VDC | 3A | 72W | 66*57*22 | 100G/125G |
| 30-60VDC | 24VDC | 4A | 96W | 58*40*22 | 100G/125G |
| 30-60VDC | 24VDC | 4A | 96W | 66*57*22 | 100G/125G |
| 30-60VDC | 24VDC | 5A | 120W | 58*40*22 | 100G/125G |
| 30-60VDC | 24VDC | 5A | 120W | 66*57*22 | 100G/125G |
| 30-60VDC | 24VDC | 5A | 120W | 74*74*32 | 300G/330G |
| 30-60VDC | 24VDC | 6A | 144W | 66*57*22 | 100G/125G |
| 30-60VDC | 24VDC | 6A | 144W | 66*57*22 | 100G/125G |
| 30-60VDC | 24VDC | 6A | 144W | 74*74*32 | 300G/330G |
| 30-60VDC | 24VDC | 10A | 240W | 74*74*32 | 300G/330G |
| 30-60VDC | 24VDC | 15A | 384W | 74*74*32 | 300G/330G |
| 30-60VDC | 24VDC | 20A | 480W | 100*80*39 | 500G/550G |
| 30-60VDC | 24VDC | 30A | 720W | 100*80*39 | 500G/550G |
| 30-60VDC | 24VDC | 40A | 960W | 150*127*63 | 1600G/1800G |
| 30-60VDC | 24VDC | 50A | 1200W | 220*127*63 | 2500G/3000G |
| 30-60VDC | 24VDC | 60A | 1440W | 220*127*63 | 2500G/3000G |
| 30-60VDC | 24VDC | 80A | 1920W | 220*130*50 | 2500G/3000G |
| 30-60VDC | 24VDC | 100A | 2400W | 220*130*50 | 2500G/3000G |
| 30-60VDC | 24VDC | 125A | 3000W | 220*156*65 | 3300G/3500G |
