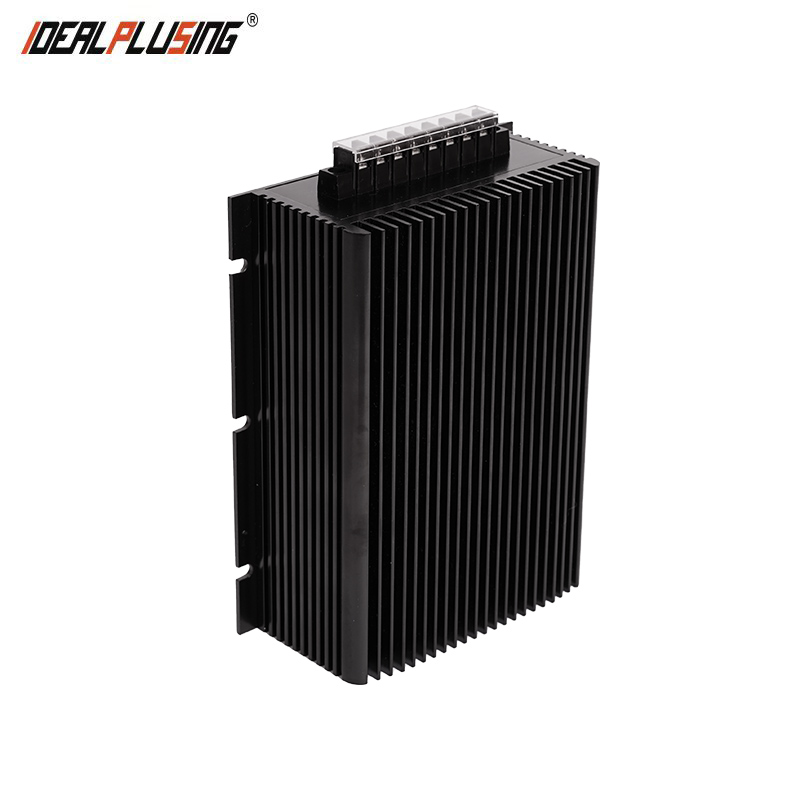

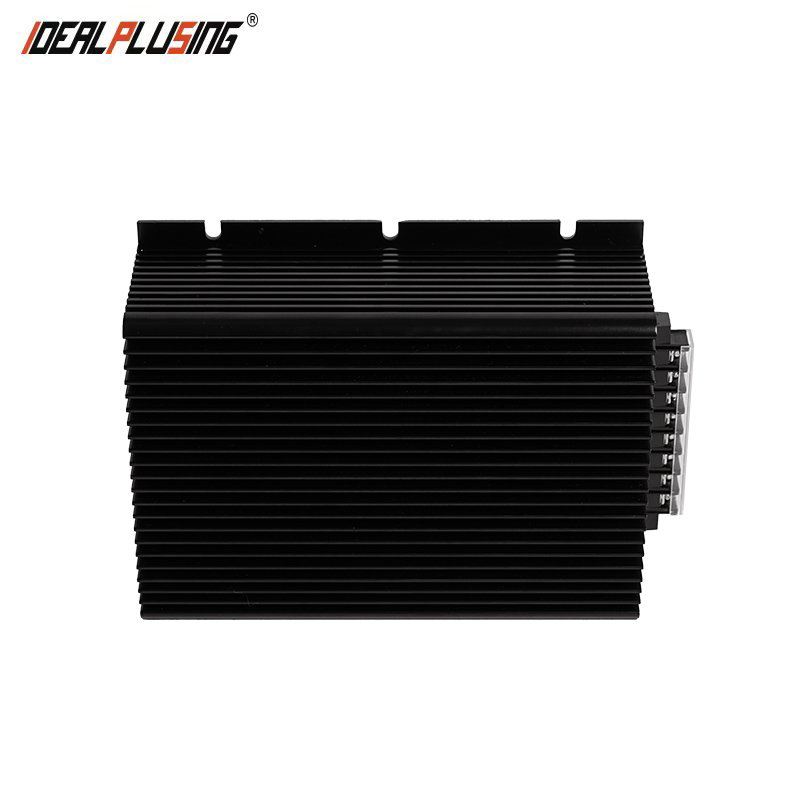

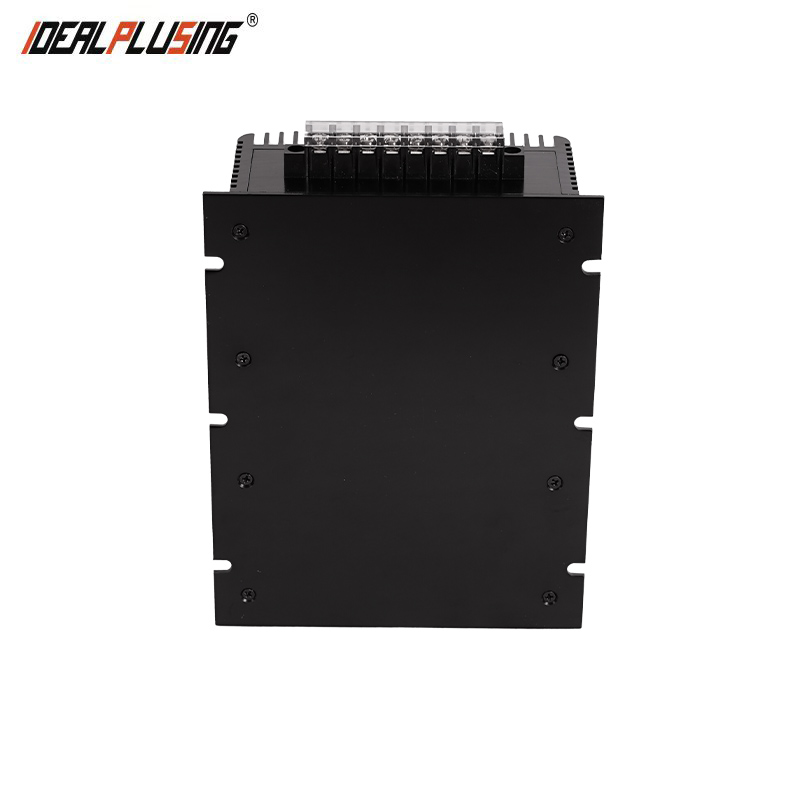

IPS-MDH500-600S24 isolated dc dc converter module power supply 600v 500W DC DC module power supply
KEY SPECIFICATIONS isolated dc/dc converters & modules Model: IPS-MDH500-600S24 ① Input Voltage Range: 400-800VDC ② Input Voltage Rating: 600VDC ③ Output Voltage: 24VDC ④ Output Current: 20.8A ⑤ Output Power: 499W ⑥ Size: 200*158*72(MM) ⑦ NW: 2.5KG ⑧Design: Isolated (We provide customized for different kinds of DC-DC solutions , if you can not find the right specification to meet your requirement. Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us)
Ⅰ.GENERAL CHARACTERISTIC
| Parameter | Value |
| Switching Frequency | 100-200KHz |
| lsolation Resitstance | 200MΩ |
lsolation Voltage
| Parameter | Value |
| Input-Output | >1500VDC |
| Input-Case | >1050VDC |
| Output-Case | >500VDC |
Environmental Characteristics
| Parameter | Value | |
| Case Temperature | Industry | -25 – +85℃ |
| Military l | -40 – +85℃ | |
| Military II | -55 – +85℃ | |
| Storage Temperature | Industry | -45 – +105℃ |
| Military | -55 – +105℃ | |
ⅡMODEL LIST
Single Channels Output
| Models |
Input voltage
(Vdc) |
Input voltage
(Vdc) |
Output voltage | Output current(A) |
Ripple and
noise(mv) |
Efficiency
(Typ) |
| IPS-DTD18-36S12-41.6 | 24VDC | 18-36VDC | 12VDC | 41.6A | 120 | 88/% |
| IPS-DTD18-36S24-20.8 | 24VDC | 18-36VDC | 24VDC | 20.8A | 240 | 89% |
| IPS-DTD36-72S12-41.6 | 48VDC | 36-72VDC | 12VDC | 41.6A | 120 | 88% |
| IPS-DTD36-72S24-20.8 | 48VDC | 36-72VDC | 24VDC | 20.8A | 240 | 89% |
| IPS-DTD66-154S12-41.6 | 110VDC | 66-154VDC | 12VDC | 41.6A | 120 | 88% |
| IPS-DTD66-154S24-20.8 | 110VDC | 66-154VDC | 24VDC | 20.8A | 240 | 89% |
| IPS-DTD400-800S12-41.6 | 600VDC | 400-800VDC | 12VDC | 41.6A | 120 | 88% |
| IPS-DTD400-800S24-20.8 | 600VDC | 400-800VDC | 24VDC | 20.8A | 240 | 89% |
| IPS-DTD400-800S110-4.5 | 600VDC | 400-800VDC | 110VDC | 4.5A | 400 | 89% |
