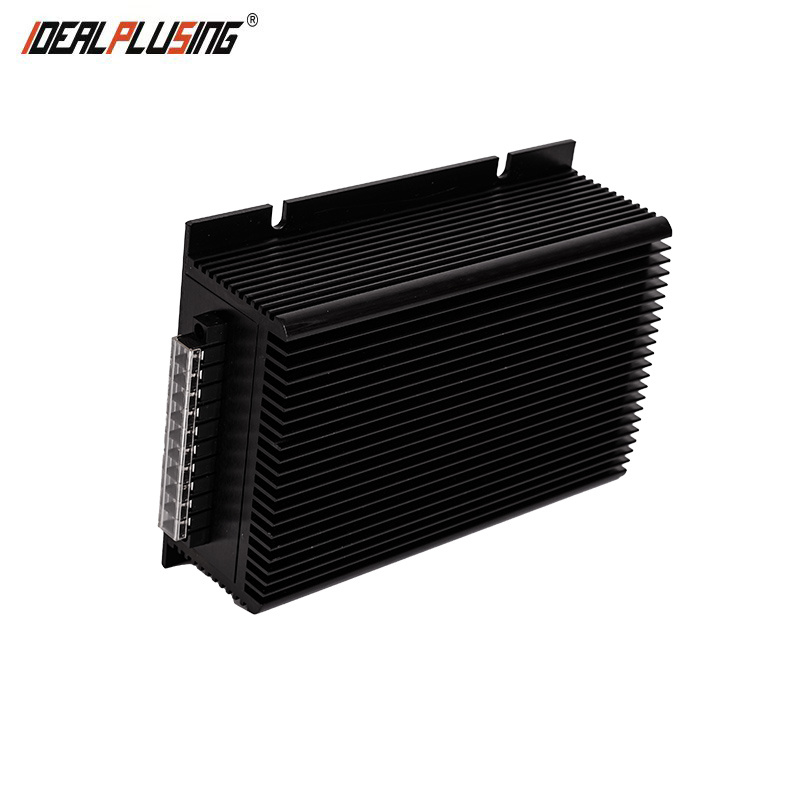

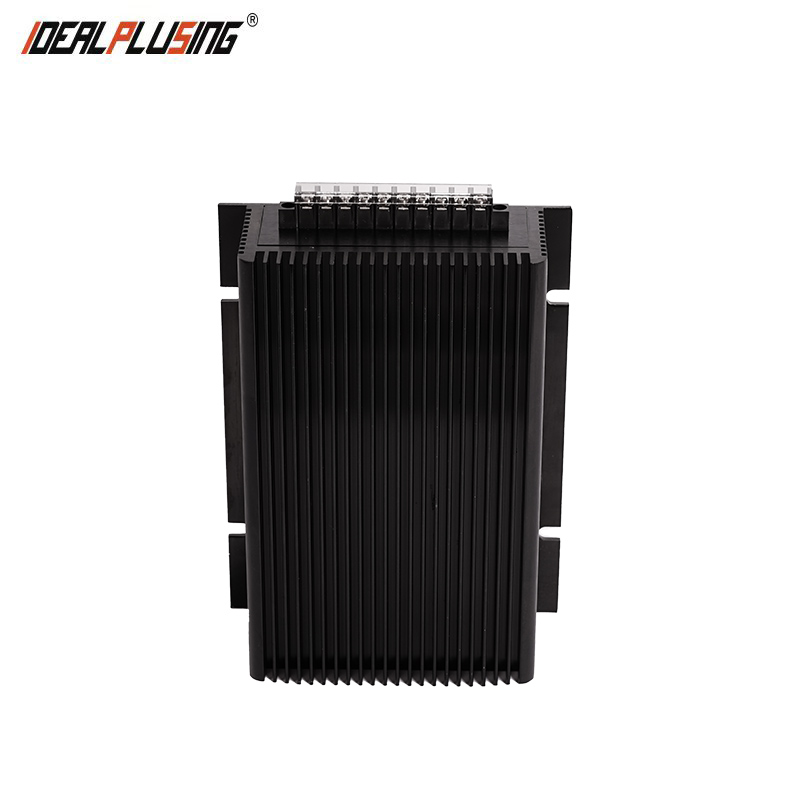

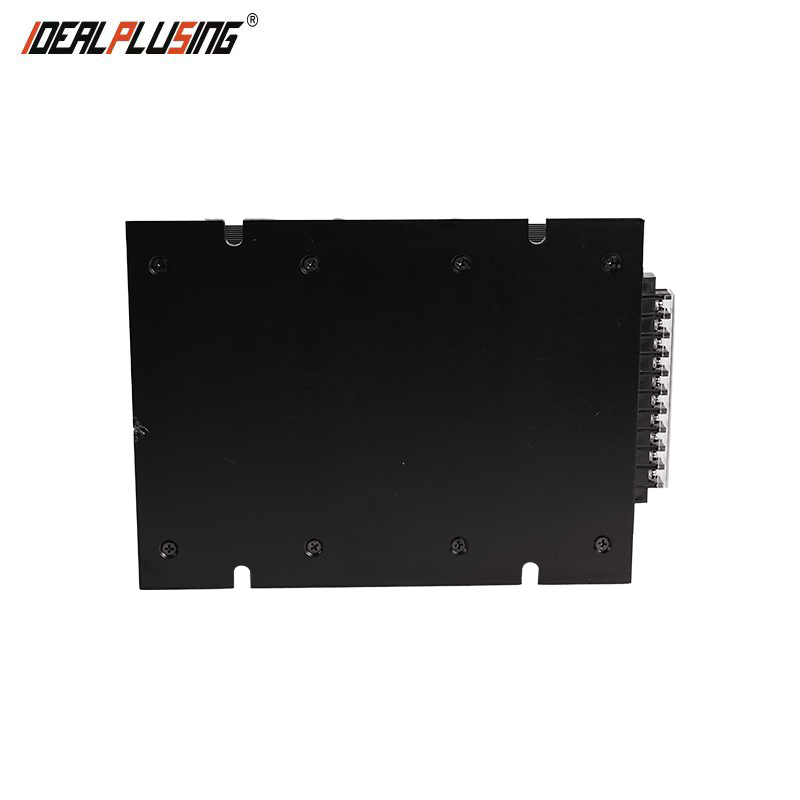

IPS-MDI800-24S12 IDEALPLUSING isolated dc dc converter 24vdc 12VDC 800W buck reduction voltage module converter
KEY SPECIFICATIONS isolated dc-dc converters pdf Model: IPS-MDI800-24S12 ① Input Voltage Range: 18-36VDC ② Input Voltage Rating: 24VDC ③ Output Voltage: 12VDC ④ Output Current: 66.6A ⑤ Output Power: 799W ⑥ Size: 240*182*81(MM) ⑦ NW: 3KG ⑧Design: Isolated (We provide customized for different kinds of DC-DC solutions , if you can not find the right specification to meet your requirement. Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us)
Ⅰ.GENERAL CHARACTERISTIC
| Parameter | Value |
| Switching Frequency | 100-200KHz |
| lsolation Resitstance | 200MΩ |
lsolation Voltage
| Parameter | Value |
| Input-Output | >1500VDC |
| Input-Case | >1050VDC |
| Output-Case | >500VDC |
Environmental Characteristics
| Parameter | Value | |
| Case Temperature | Industry | -25 – +85℃ |
| Military l | -40 – +85℃ | |
| Military II | -55 – +85℃ | |
| Storage Temperature | Industry | -45 – +105℃ |
| Military | -55 – +105℃ | |
ⅡMODEL LIST
Single Channels Output
| Models |
Input voltage
(Vdc) |
Input voltage
(Vdc) |
Output voltage | Output current(A) |
Ripple and
noise(mv) |
Efficiency
(Typ) |
| IPS-DTD9-18S12-41.6 | 12VDC | 9-18VDC | 12VDC | 41.6A | 150 | 85% |
| IPS-DTD18-36S12-66.6 | 24VDC | 18-36VDC | 12VDC | 66.6A | 150 | 86% |
| IPS-DTD18-36S24-41.6 | 24VDC | 18-36VDC | 24VDC | 41.6A | 200 | 88% |
| IPS-DTD36-72S24-41.6 | 48VDC | 36-72VDC | 24VDC | 41.6A | 200 | 89% |
| IPS-DTD66-154S110-7.27 | 110VDC | 66-154VDC | 110VDC | 7.27A | 600 | 89% |
| IPS-DTD66-154S48-20.8 | 110VDC | 66-154VDC | 48VDC | 20.8A | 300 | 89% |
| IPS-DTD400-800S24-41.6 | 600VDC | 400-800VDC | 24VDC | 41.6A | 200 | 89% |
| IPS-DTD400-800S110-9.1 | 600VDC | 400-800VDC | 110VDC | 9.1A | 400 | 89% |
